CytoCam Model 4 Technical Specs.

CytoCam Model 4 Features

  • A high-resolution, high speed camera

  • Very light and easy to handle (120 grams)

  • High contrast images

  • Highly accurate, motor assisted focusing

  • Global shutter and very short illumination pulse time for freezing RBC motion

  • Can connect to any PC compatible device via USB3 for image storage and analysis

  • Includes a camera adapter with a dedicated microprocessor for controlling camera and high-speed image transfer

  • Extremely easy user interface. Optional: Remote control by “AirMouse”

  • CytoCamTools Bedside Manager  for camera management, capturing, file editing and reviewing

  • CytoCamTools Analysis Optional Module for analysis of capillary density and flow and other parameters.

Camera

  • Sensor: Sony IMX252LLR-C monochrome

    • 3,19 Megapixel: 2064 x 1554 pixels,

    • Pixel size 3,45 x 3,45 μm

    • Output: 8 bit RAW
    • Native mode

      • Frame size:  2048 x 1536 pixels,

      • Image area: 7066 x 5299 μm

      • Image transfer rate: 85 fps (full resolution)
    • Compatibility mode
      • Cropped frame size:  1772 x 1328 pixels
      • Cropped image area: 6113 x 4582 μm
      • Image transfer rate: 95 fps
  • Optics
    • Microscopy lens designed for Braedius
    • Magnification factor: 4
    • Field of view
      • Native mode: 1,766 x 1,324 mm
      • Compatibility mode: 1,528 x 1,145 mm
  •  Focusing
    • Focusing: manually controlled motorized focusing system,
    • Step Size 4 µm, accuracy better than 4 µm

  • Illumination

    • Based on Incident Darkfield Imaging (IDF)

    • High Brigthness LEDs

    • Standard color: green (525 nm), other colors on request

  • Exposure : trigger controlled by FPGA

    • Global shutter, best for freezing movement

    • Exposure and illumination synced by special FPGA controller

    • Pulse time: Configurable, 1 ms or more, 2 ms default

    • Double exposure configurable, available on request

Safety and protection

  • Disposable medical clean protection cap
  • Disposable sterile protection cap

Software

  • Free CytoCamTools  CameraManager, Viewer, Editor

  • Application and driver available for Windows 10 – 64 bit
    Linux and IOS support under development

  • Optional but recommended:
    • CytoCamTools Bedside Manager
    • CytoCamTools Bedside Manager

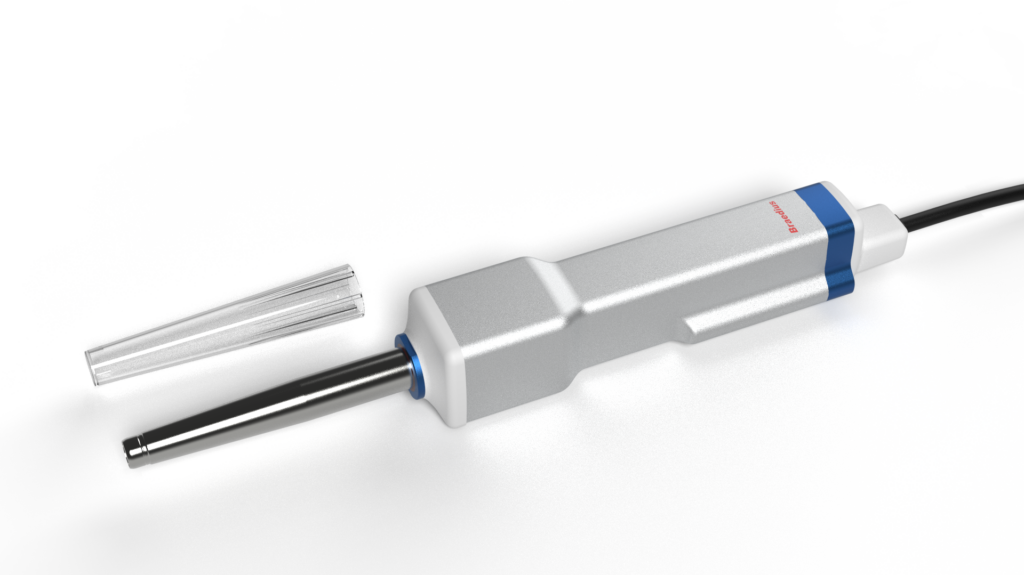

CytoCam Model 4
