CytoCam Device Controllers

Device controllers

There is a wide variety of options. In the past Panel PC’s were a requirement as they provided the option to install an internal PCI-card based camera adapter. Having moved to USB3 based camera adapters the choices have multiplied.

Configurations may be based on a lightweight tablet, a high-end laptop or a 24″panelPC on a trolley.

The hospital solution

This solution is based on a panelPC with 24″ touchscreen. This requires a medical grade trolley (stable enough to carry 12 Kgf). We recommend the use of a separate keyboard and mouse, although this is not really required due to the touch screen.

Camera device controller

  • Tangent Medix Medical grade Panel PC
    • 8 core processor
    • Fanless system
    • 24 ” touch screen
    •  1 TB HD, 2 TB ooption
    • Windows 10 Pro, 64 bit
  • Camera adapter
    •  USB3 , USB 3 integrated in Camera

The hospital solution

This solution is based on a panelPC with 24″ touchscreen. This requires a medical grade trolley (stable enough to carry 12 Kgf). We recommend the use of a separate keyboard and mouse, although this is not really required due to the touch screen.

Camera device controller

  • Tangent Medix Medical grade Panel PC
    • 8 core processor
    • Fanless system
    • 24 ” touch screen
    •  1 TB HD, 2 TB option
    • Windows 10 Pro, 64 bit
  • Wincomm Medical grade Panel PC
    • 6 core processor
    • Fanless system
    • 24 ” touch screen
    •  1 TB HD
    • Windows 10 Pro, 64 bit
  • Optional Camera adapter
    •  Isolated USB3

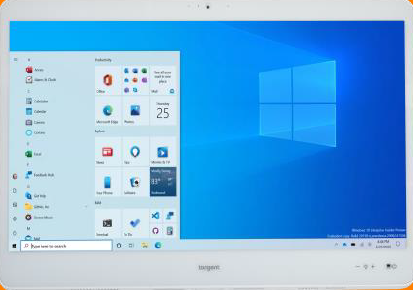

Tangent Medix Front view

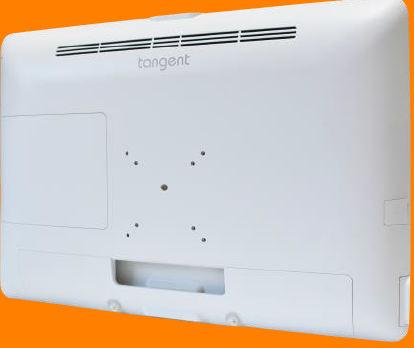

Tangent Medix rear view

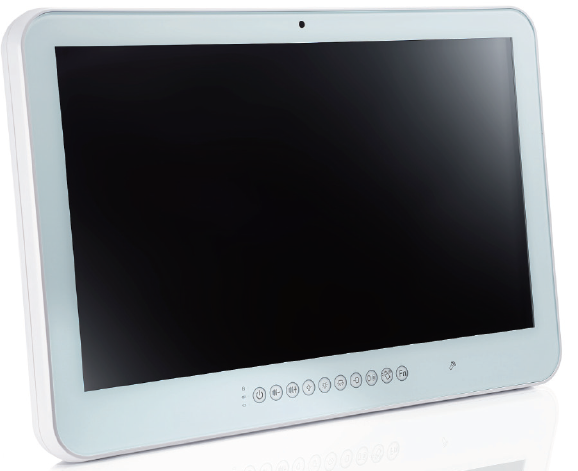

Wincomm PanelPC

The mobile solution

This solution is based on the use of the Camera Adapter Model 2 which is based on a USB3 connection to the Device Controller.

The Device Controller may be any PC with a “state of the art” USB3 port with sufficient  supply of power. The experience shows that this is not always the case. Each type of notebook or tablet should  be tested!

Other requirements are

  • Full HD (16:9) display
  • Recommended screen size 15″
  • Min. 4 core  Intel processor or Ryzen processor, 8 cores or more recommnded
  • 16 GB memory
  • Min. 512 GB SSD

Braedius intends to perform a certification test of the following products

  • Lenovo P51 (15,6 “) (deprecated)
  • Lenovo P71 (17 “)
  • Lenovo Yoga 730 (15″) or similar
